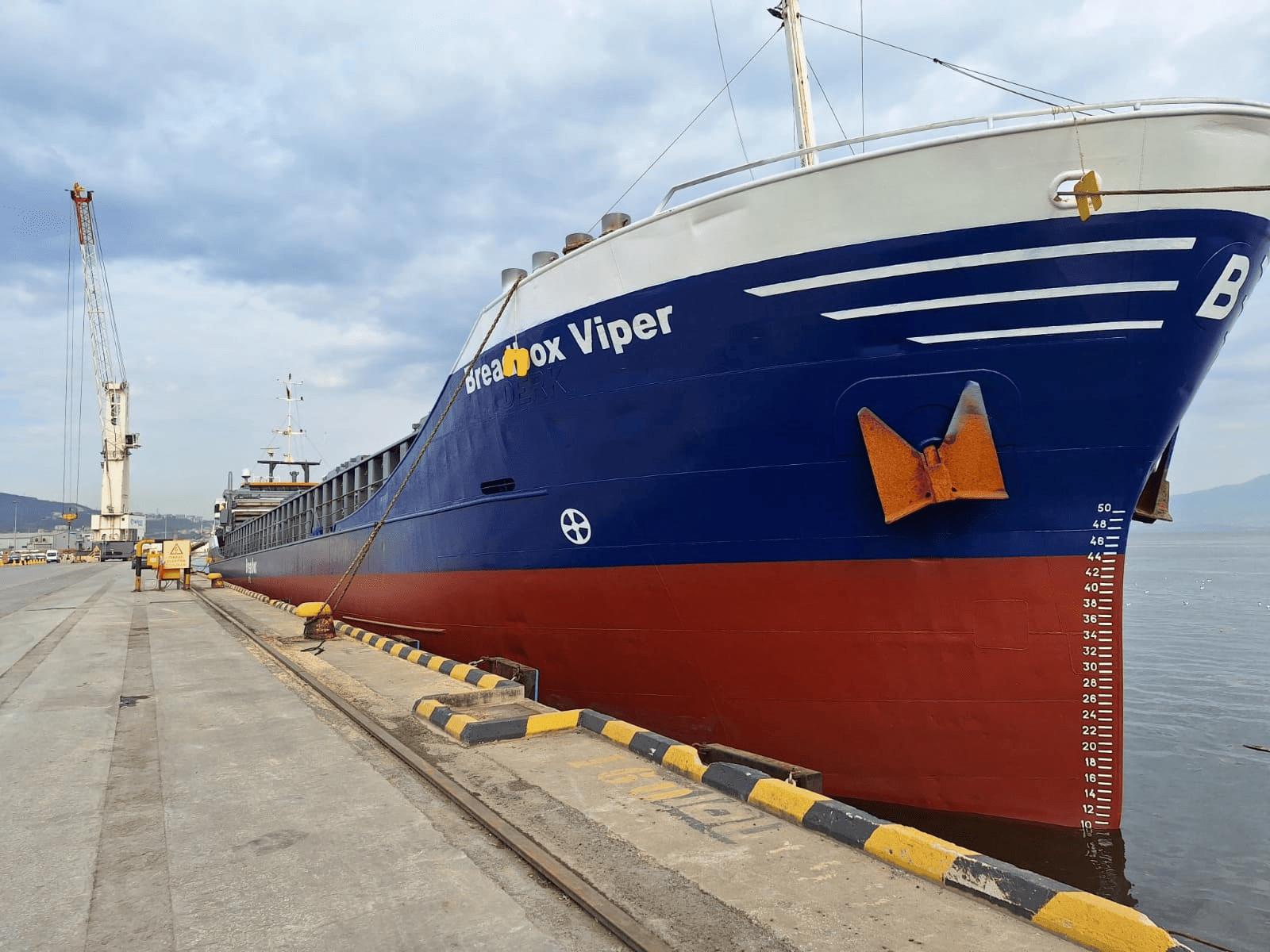

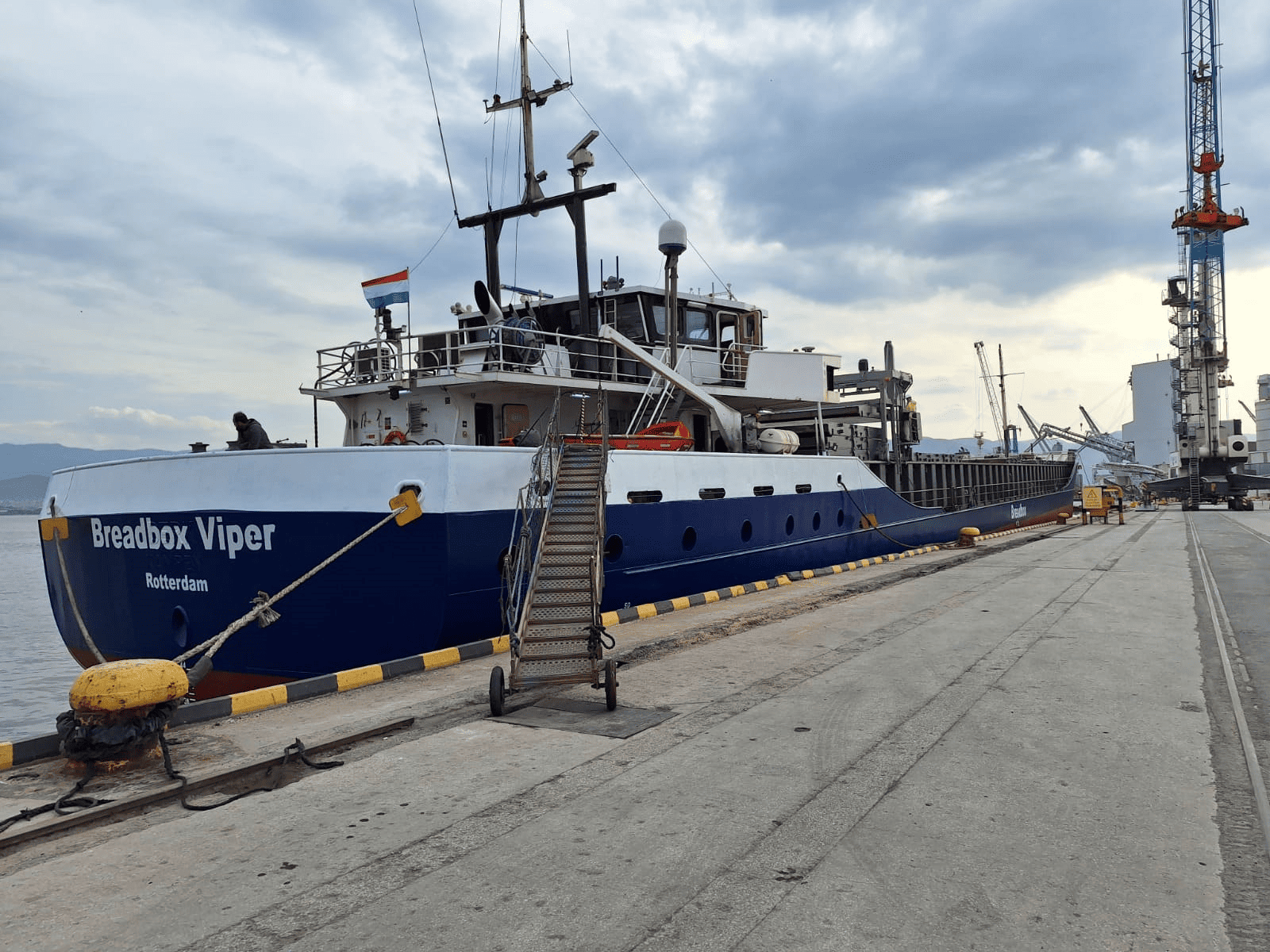

NameBREADBOX VIPER
FlagNetherlands
Port of RegistryRotterdam
IMO Number9201932
Call Sign
MMSI Number246199000
ClassificationRINA (IACS)
Class NotationC ✠ general cargo ship - double side-skin – heavy cargo; unrestricted navigation ICE CLASS ID; STRENGTHBOTTOM
TypeGeneral Cargo
Built Date2000
ShipyardPETERS' SCHEEPSBOUW B.V. - Kampen
P&I Insured byMS Amlin
H&M Insured byOrbis
Sailing AreaA1 + A2 + A3
Ice ClassICE CLASS ID
Deadweight2956
GRT / NRT2056 / 1168
Lightship1095.40 MT
LOA / LBP88.95 / 84.95 m
Breadth12.40 m
Summer Draft4.354 m
Freeboard1.40 m
Depth Moulded5.65 m
Air Draft in Ballast10.00 m
Height from Keel to Mast15.00 m
FW Allowance180 mm
TPC SSW14.0 t/cm
Distance WLHC in Ballast4.00 m
DWCC2750 mt
Number of Holds & Hatches2 Holds & 2 Hatches
Grain Hold 11980 CBM - 69.900 CBFT
Grain Hold 23380 CBM - 119.345 CBFT
Grain Total5360 CBM - 189.245 CBFT
Bale Hold 11960 CBM - 69.242 CBFT
Bale Hold 23360 CBM - 118.598 CBFT
Bale Total5320 CBM - 187.840 CBFT
Hatch TypePontoon type
Hatch 1 Dimensions18.00 m x 10.00 m
Hatch 2 Dimensions22.00 m x 10.00 m
Hold 1 Dimensions20.00 m x 10.00 m
Hold 2 Dimensions26.00 m x 10.00 m
GearsNIL
Tank Top Strength10.0 mt/m²
Floor Spacexxx under deck / xxx on deck
Holds VentilationsNatural
Movable BulkheadNo
Container Capacity-
Eco Speed - Laden9.0 Knots
Eco Speed - Ballast9.5 Knots
Eco Speed Consumption3.5 mt MGO + 0.4 mt MGO
Full Speed - Laden10.5 Knots
Full Speed - Ballast11.0 Knots
Full Speed Consumption4.2 mt MGO + 0.5 mt MGO
Idle at Port0.5 mt MGO
Work at Port1.2 mt MGO
Main EngineCaterpillar 3516B-HD
Main Engine Power1 x 2000 kW at 1600 rpm
Reduction GearReintjes gearbox
Auxiliary Engine2 x 150 kW
Emergency Generator1 x 50 kW
BowthrusterFitted
Propeller1 x 4 Blades Fixed Pitch 1200 mm
Shaft GeneratorYES
